Essential Linux

Introduction to Linux

Where does Linux originate from?

• The spiritual mother of Linux is Unix.
• POSIX is not an OS in itself but a standard.
  • Which OS's are POSIX compliant

Who is behind this project?

• Who is Richard Stallmann?
• Who is Linux Torvalds?

What is the deal with 'GNU-slash-Linux'?

• GNU/Linux controversy
  • What is a kernel
  • What does GNU bring to the table?
  • What's the deal with userspace and kernelspace?
    • userspace
    • kernelspace

Where can you get some Linux?

• You probably already have a Linux computer running at home!

Debian

• Reasons to choose Debian.
• Why is Debian called the universal operating system?
  • comparison of CPU architectures
  • download Debian

How to create a virtual machine

Step by step walk-through of a VM creation in virtualbox with some notes on each step with best practice pointers.

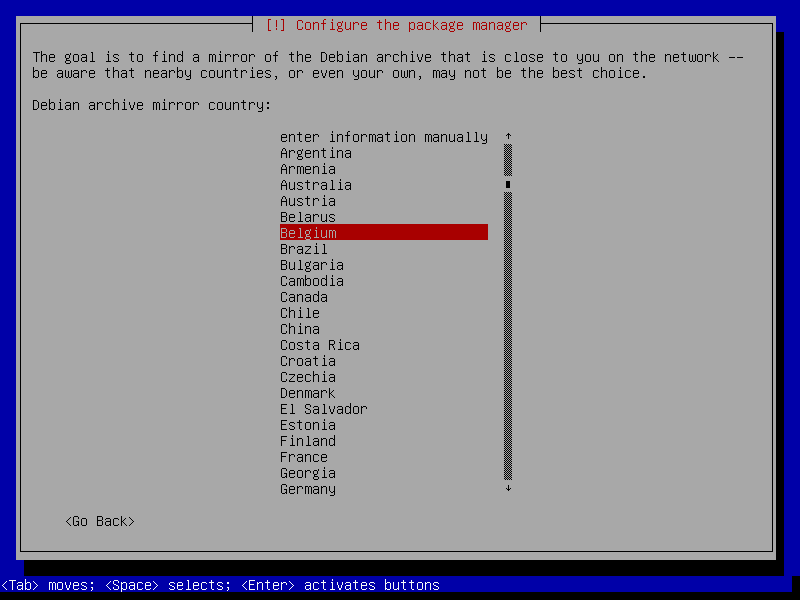

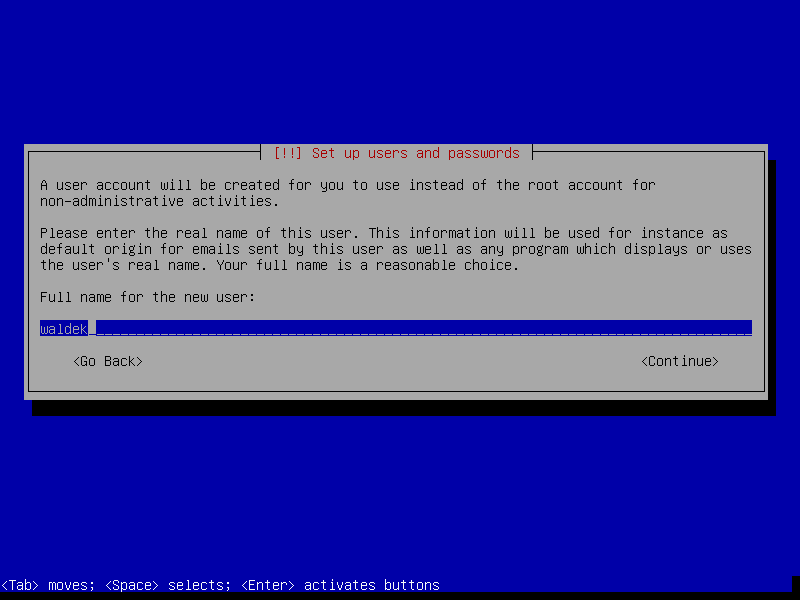

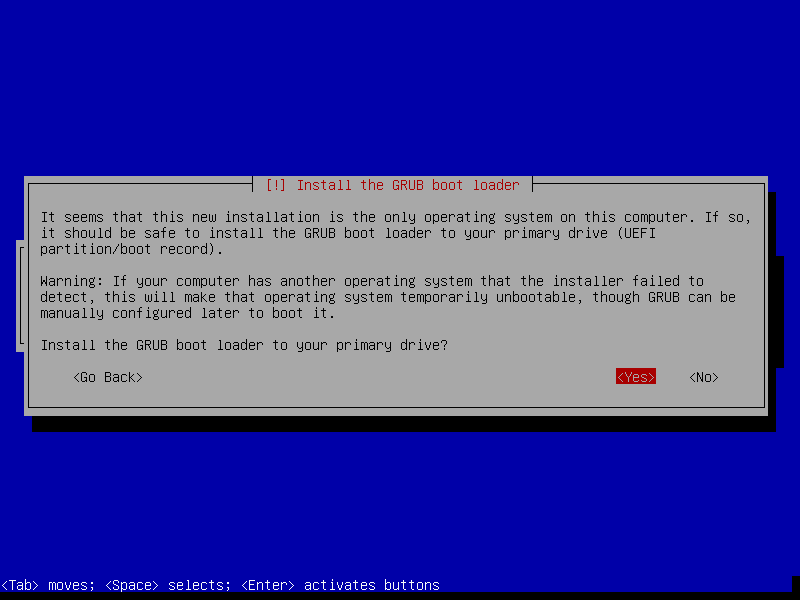

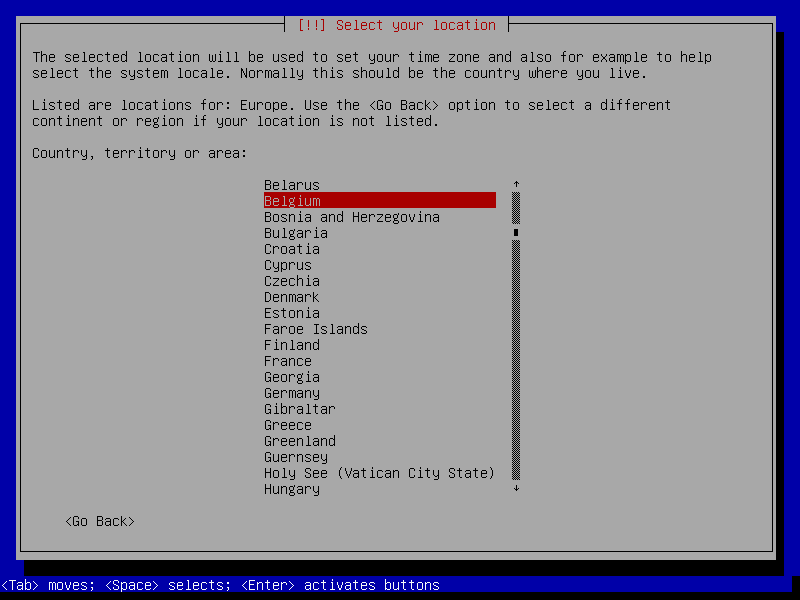

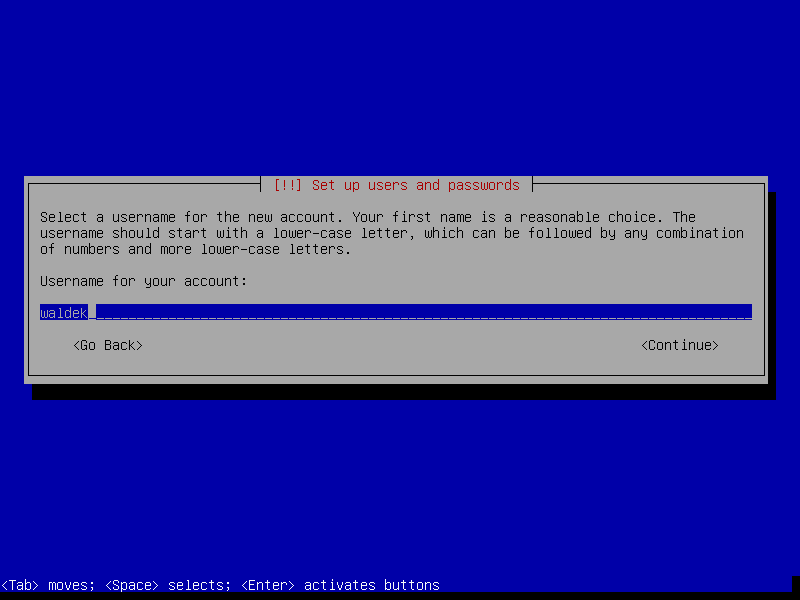

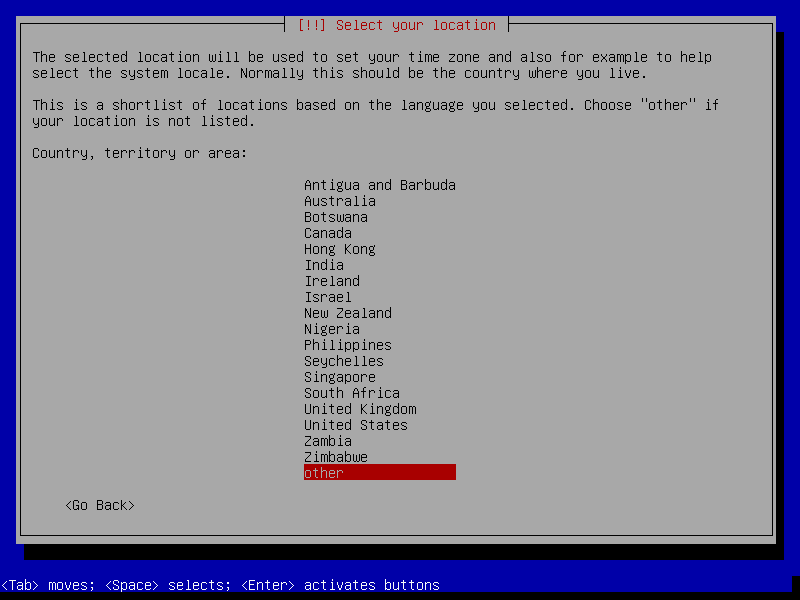

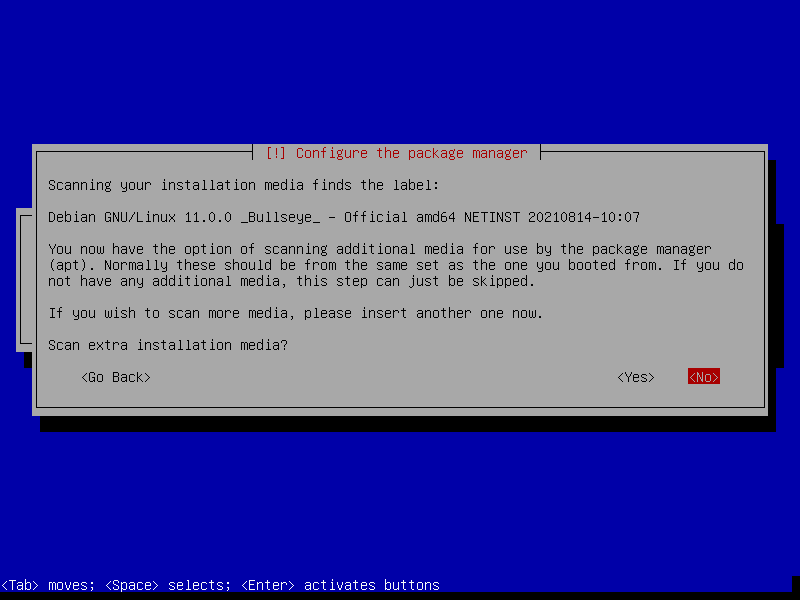

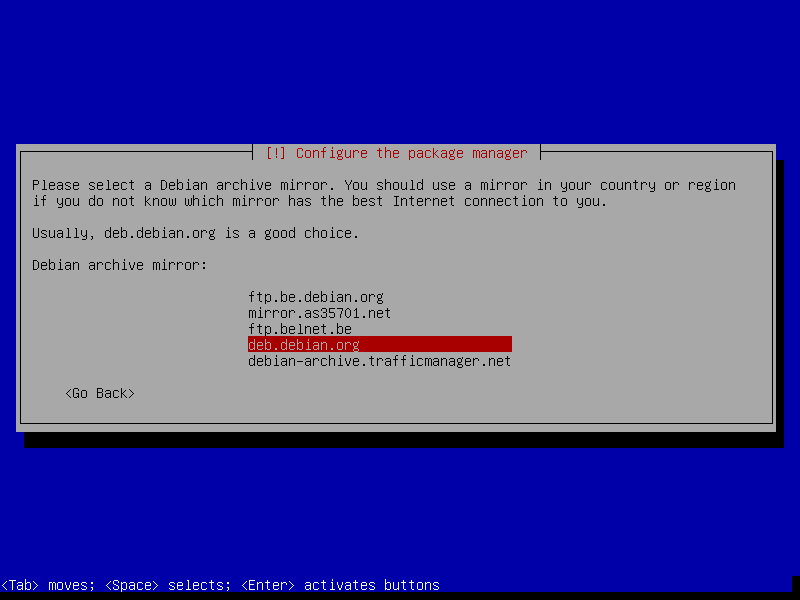

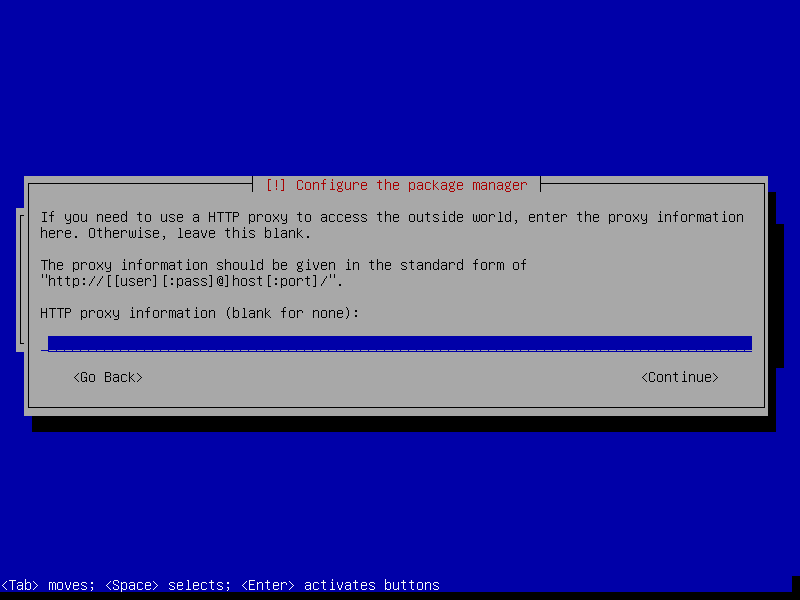

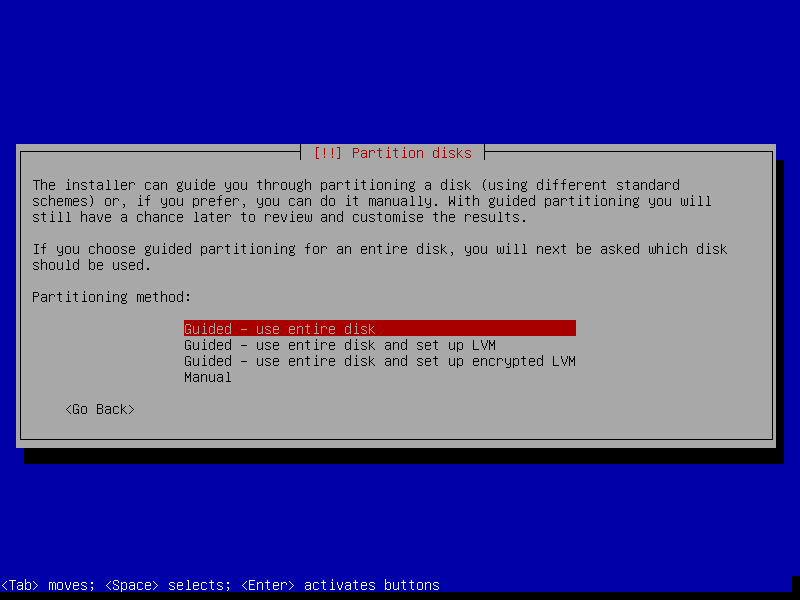

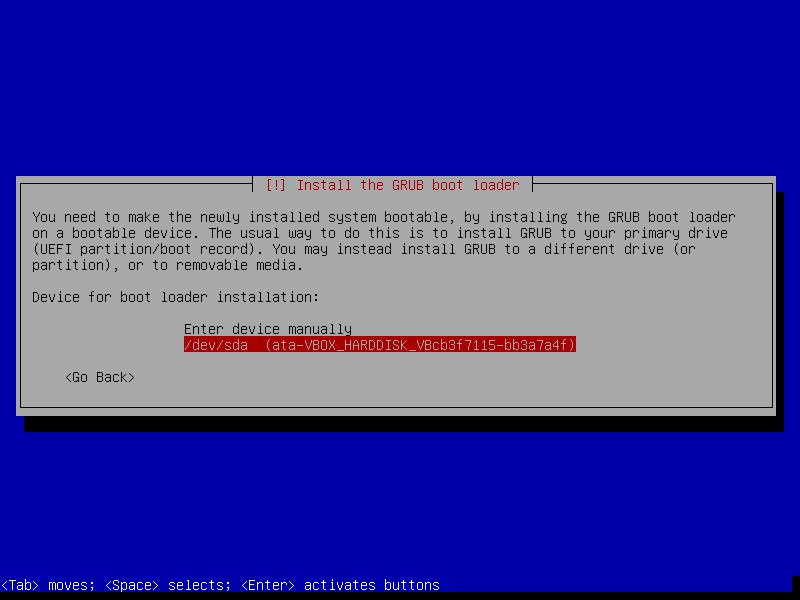

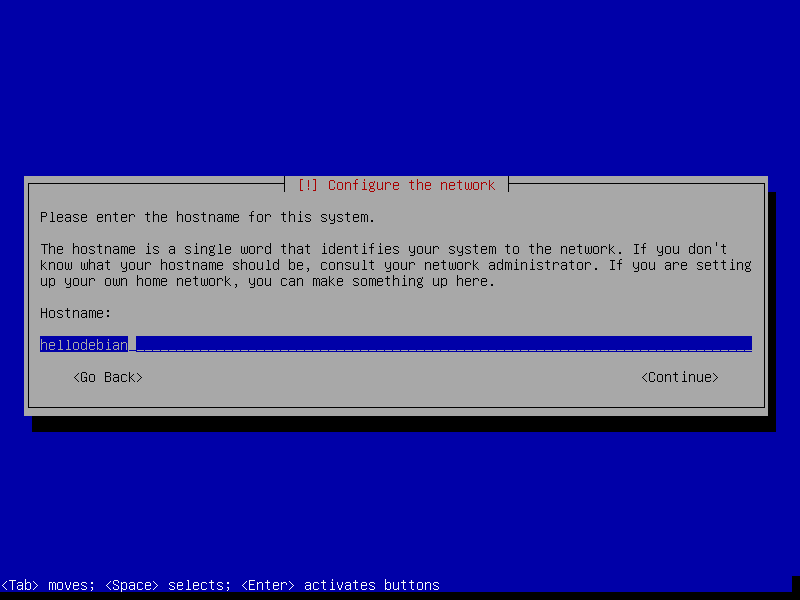

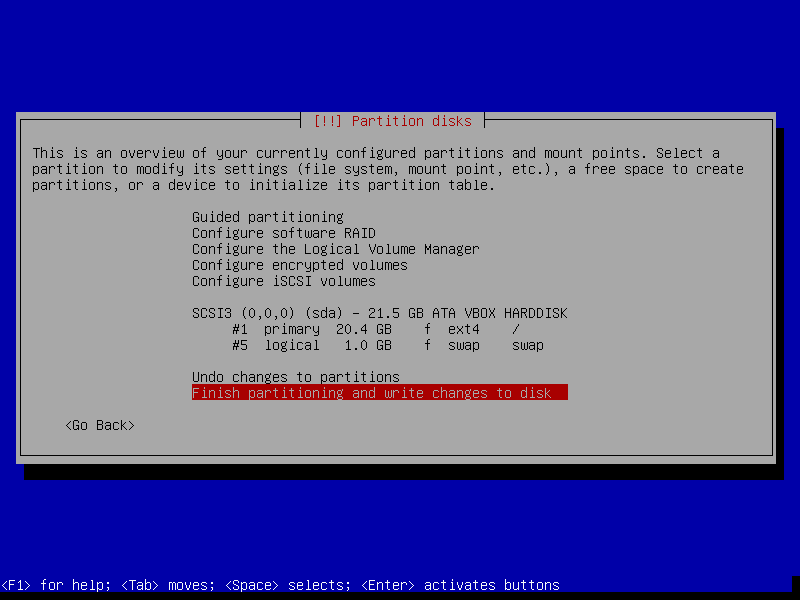

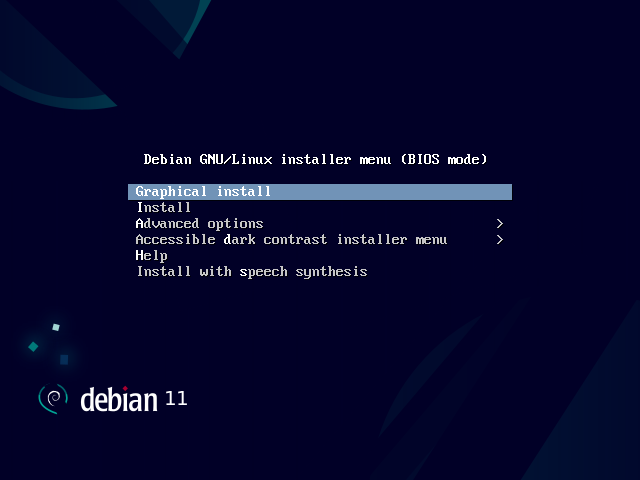

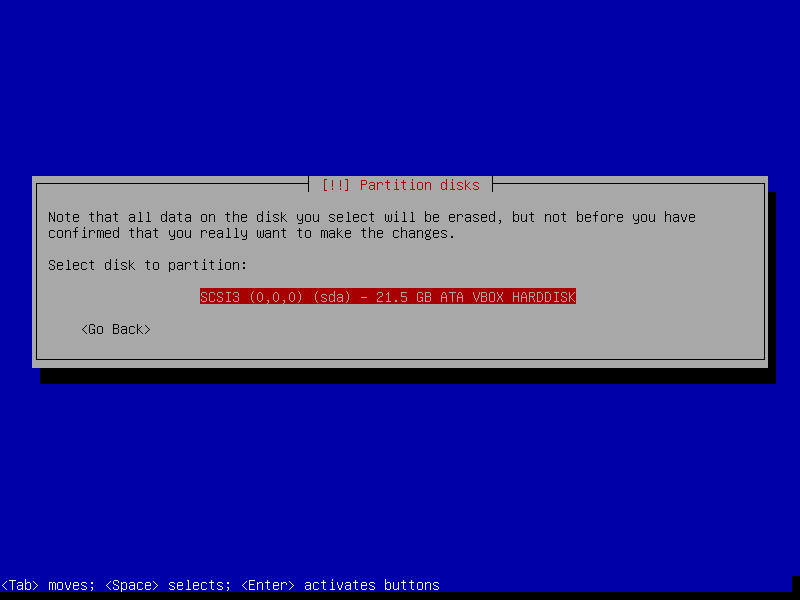

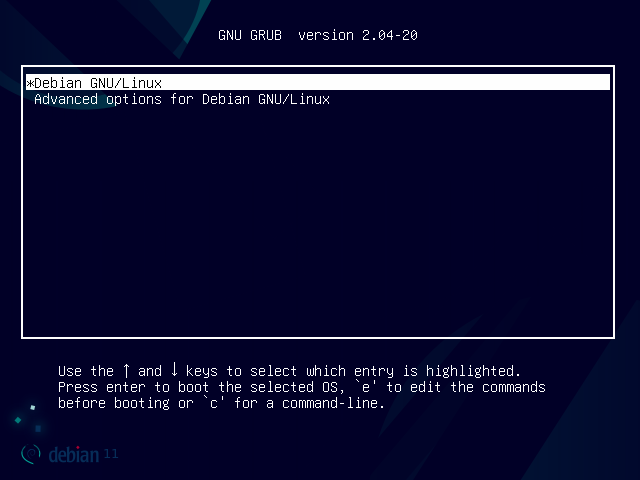

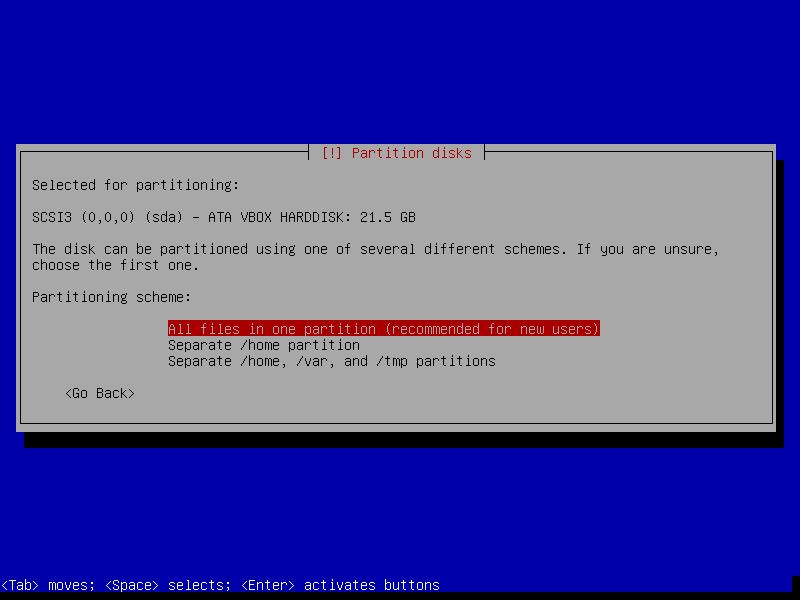

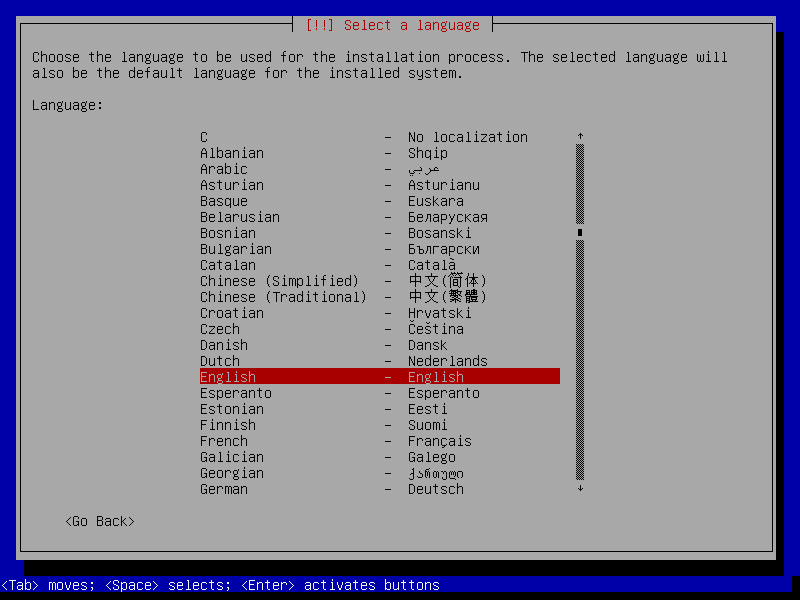

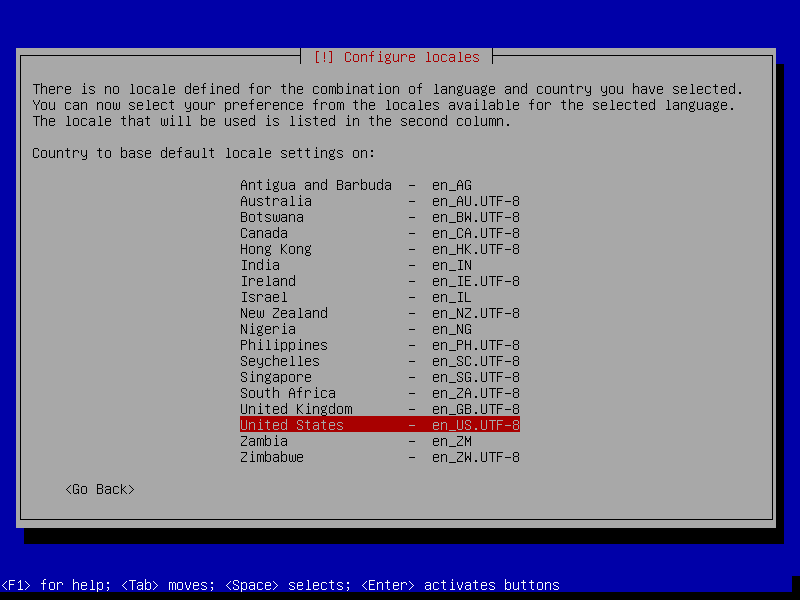

Breakdown of the Debian installation

All right, enough talking, let's get started! I'll install a full blown and modern graphical Debian machine and I would like you to not do it yourself but take notes on each step so you'll be able to reference your notes later when I ask you to install a machine yourself.

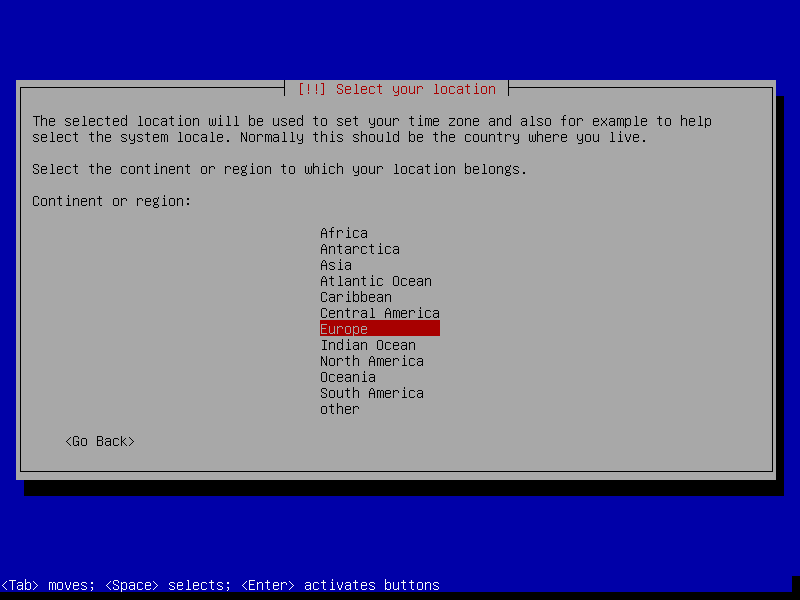

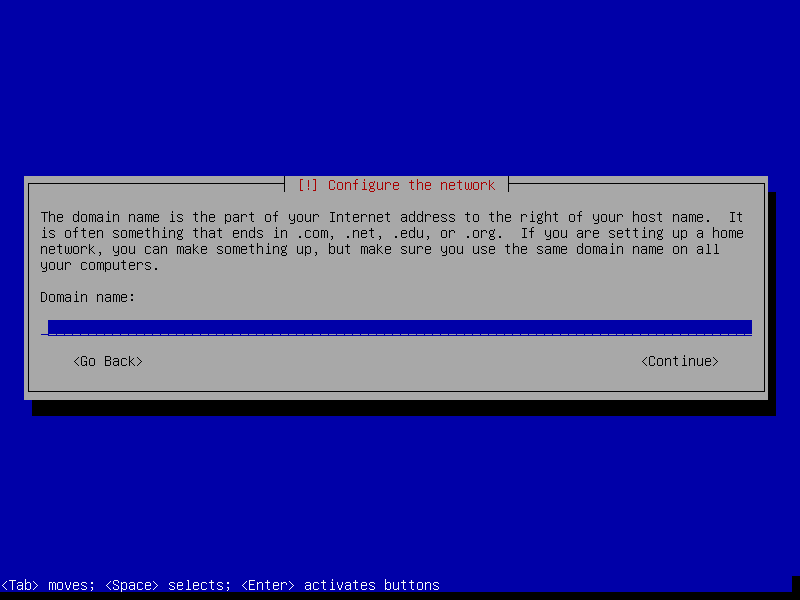

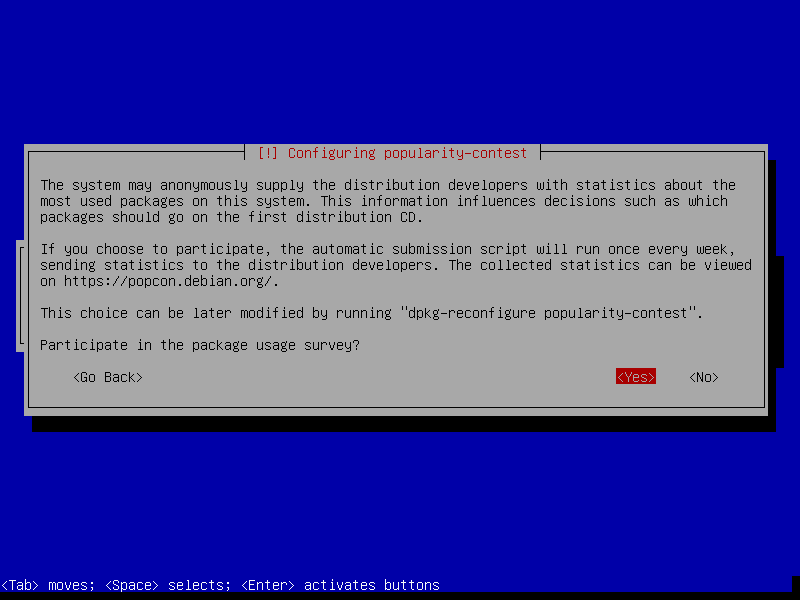

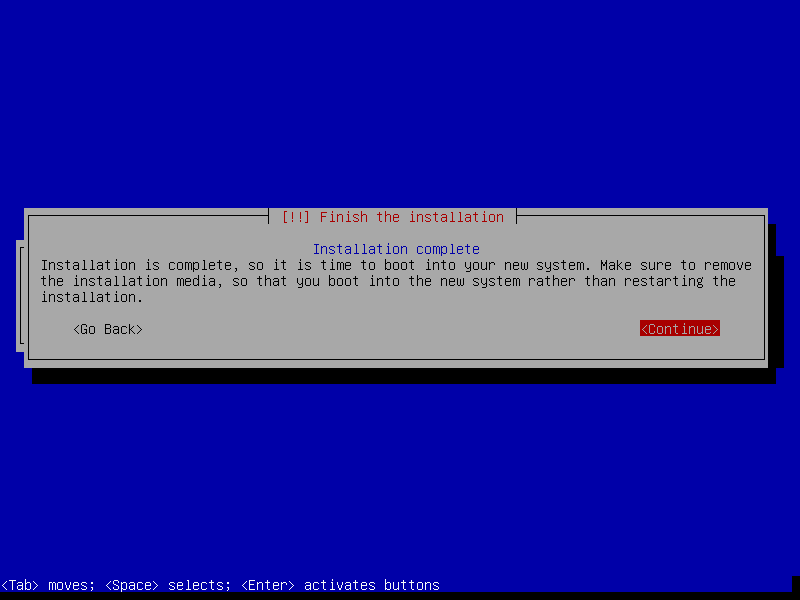

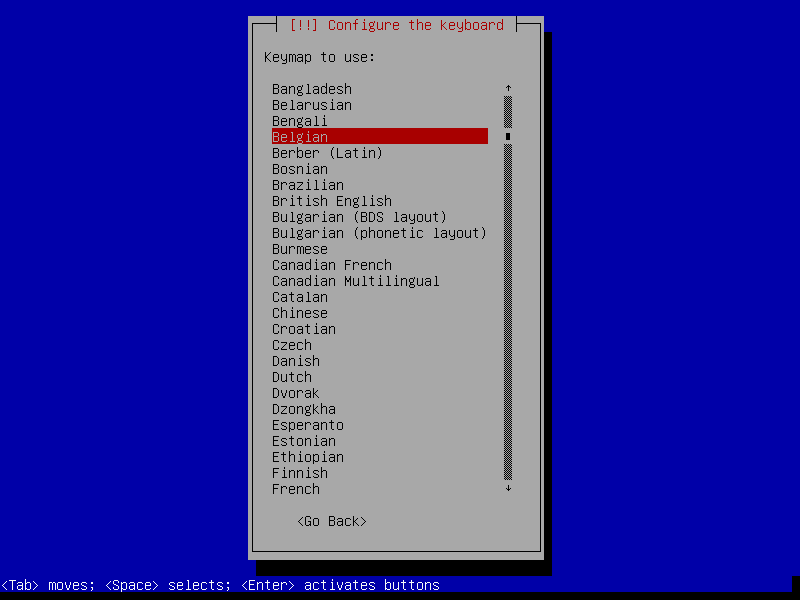

• step by step installation instructions

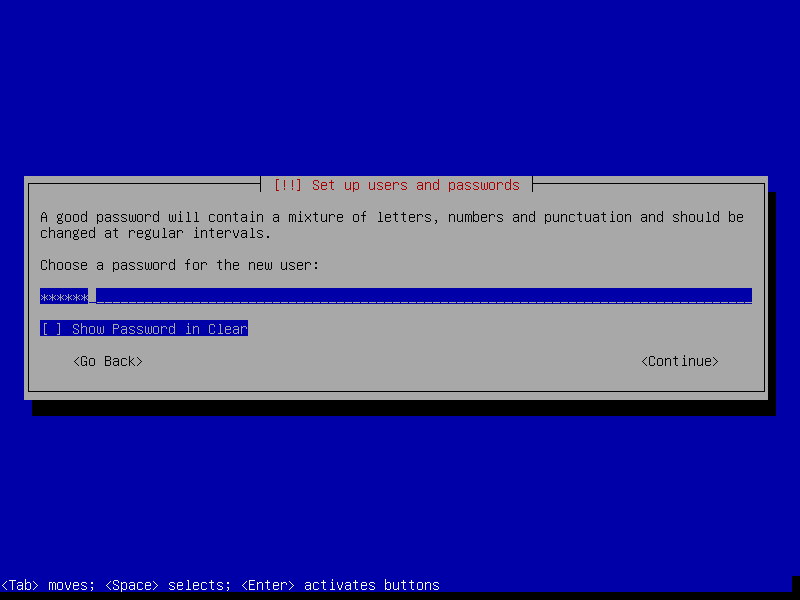

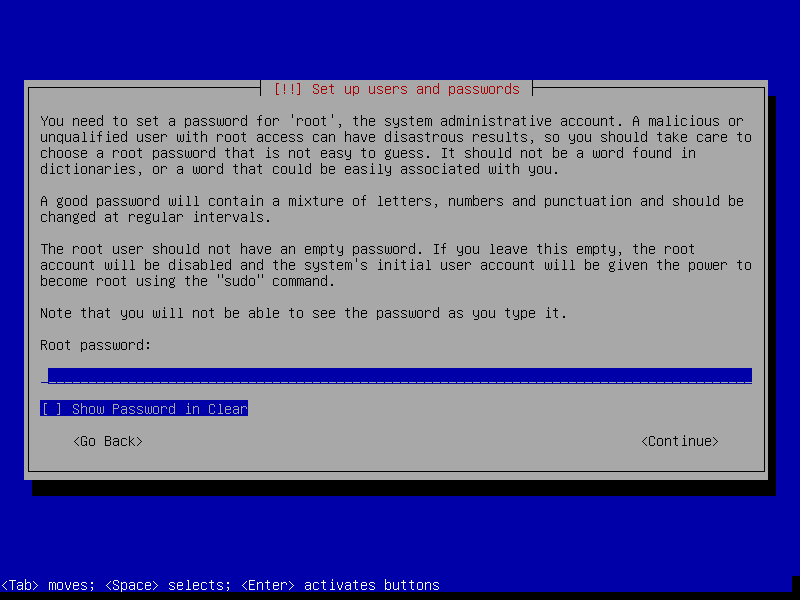

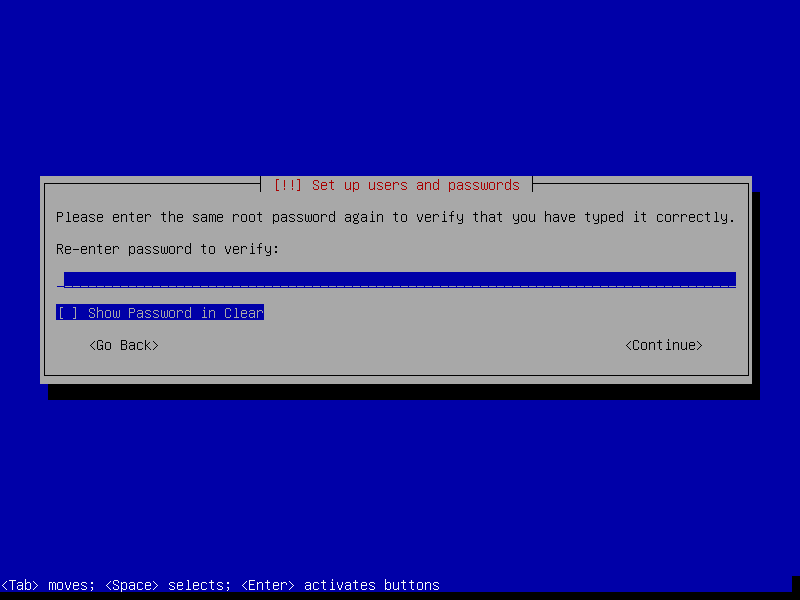

  • don't set a root password, use sudo instead

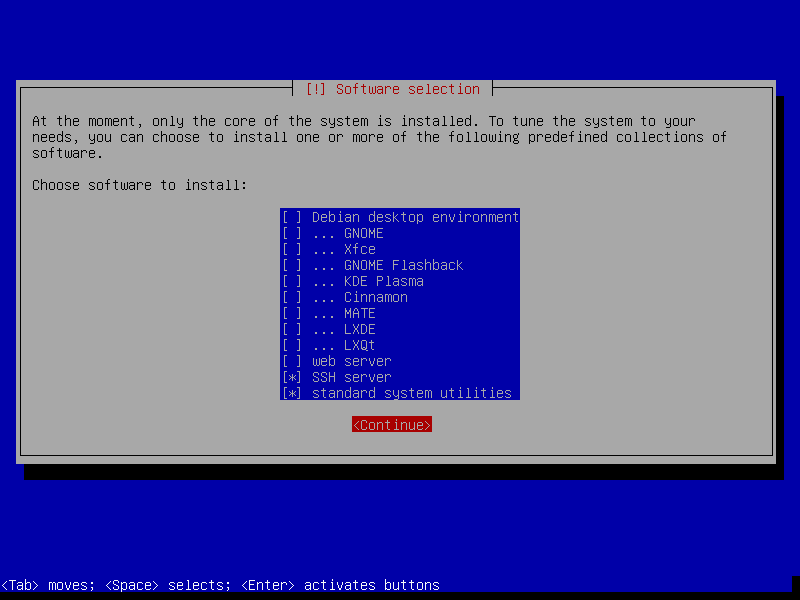

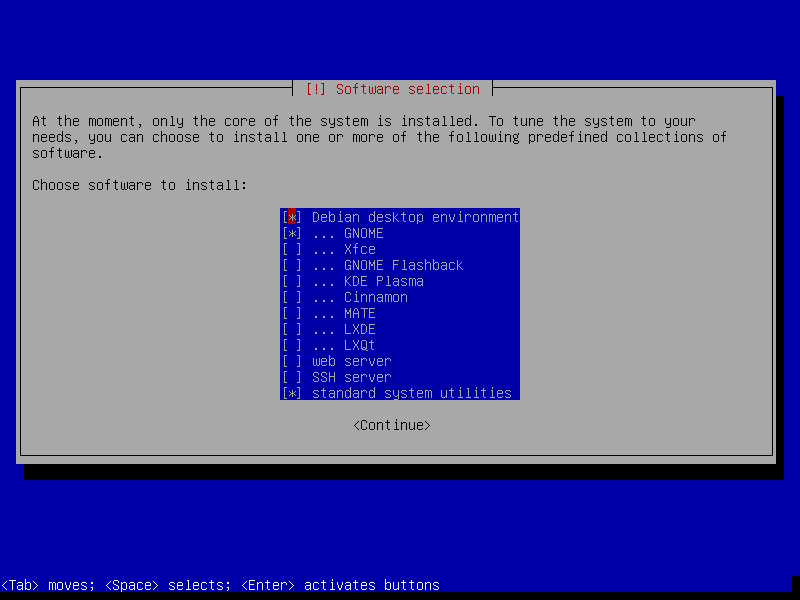

  • stress the graphical/minimal difference

Exercise

OK, now it's up to you! Please install a Debian machine with the default graphical environment. Once installed, take some time out to explore the system. Which software is installed by default? How can you tweak the system settings such as language, keyboard, networking? Can you install extra software?

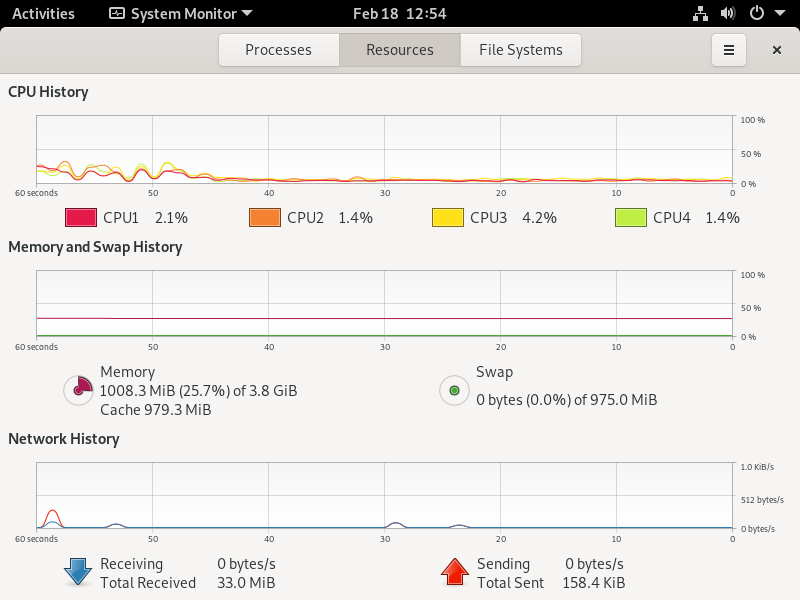

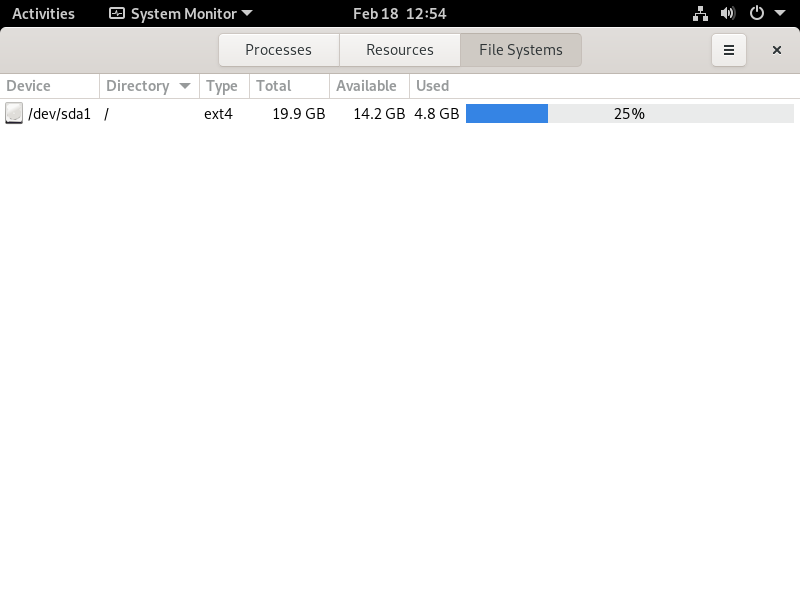

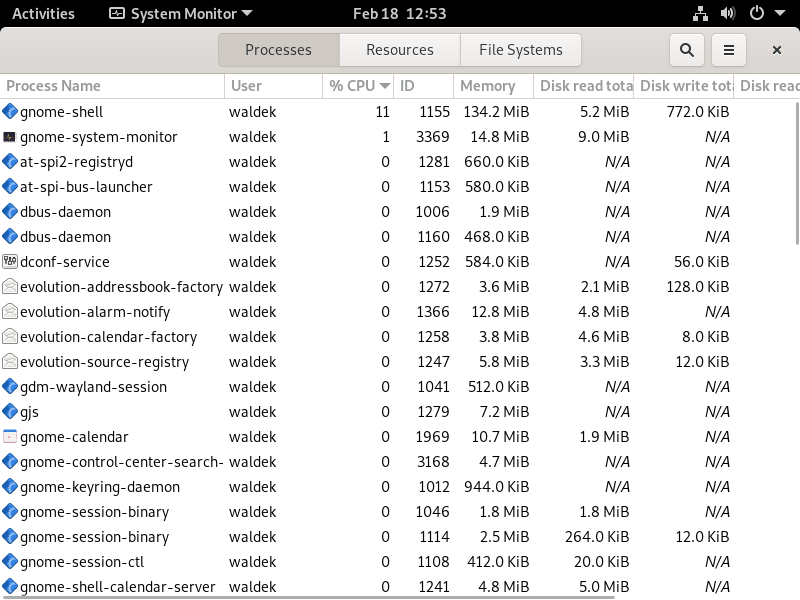

Quick look at an idle system

Package managers

• what is a package manager

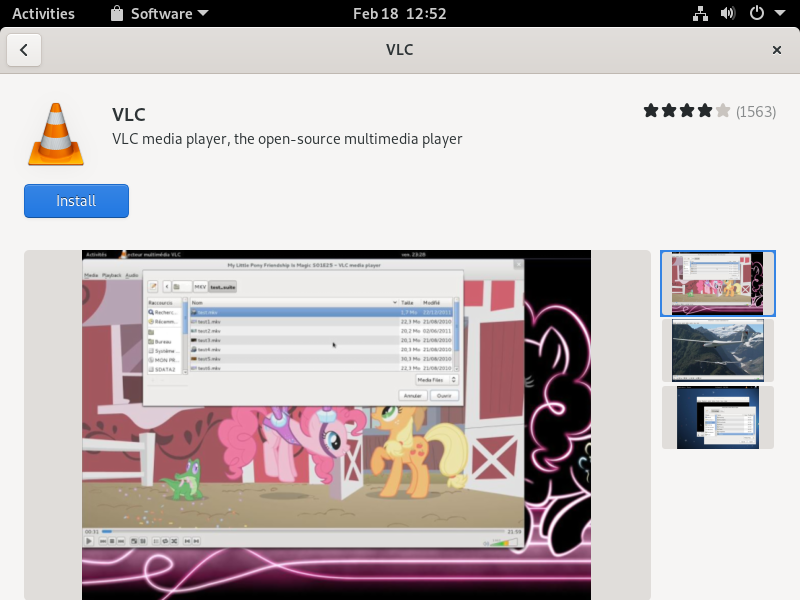

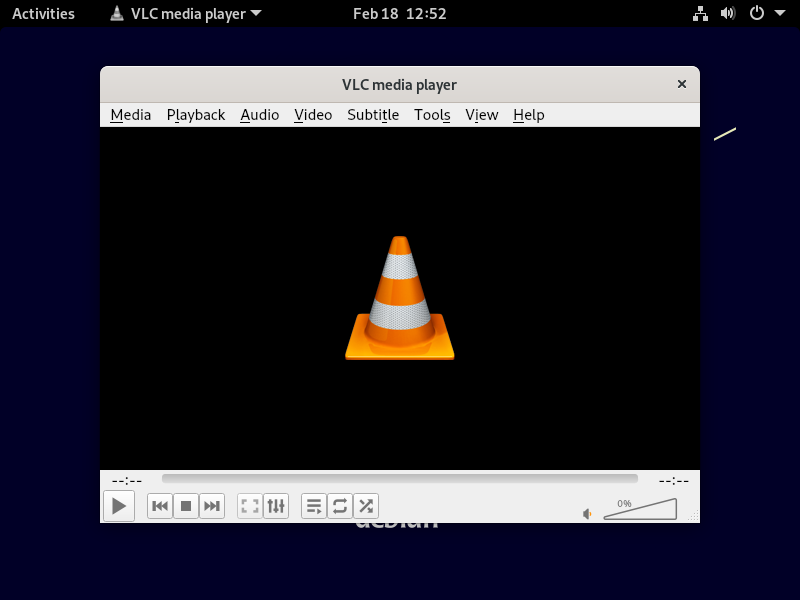

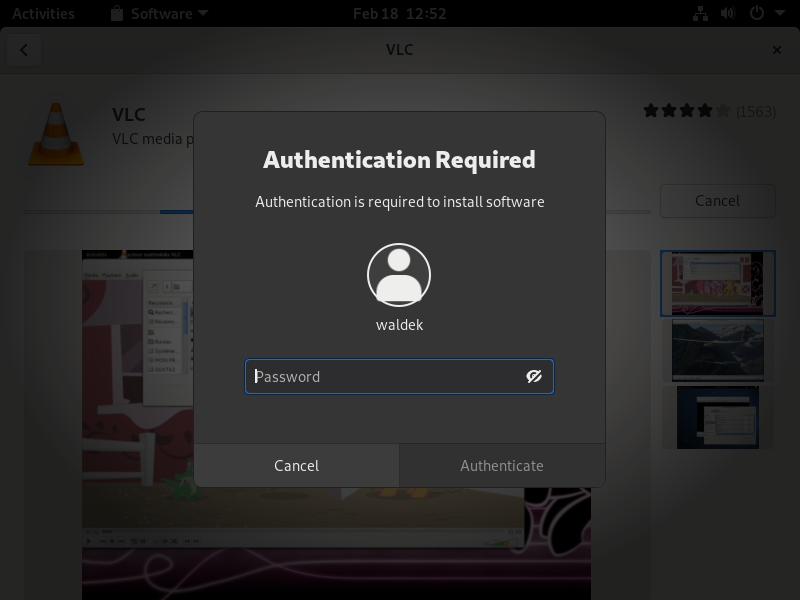

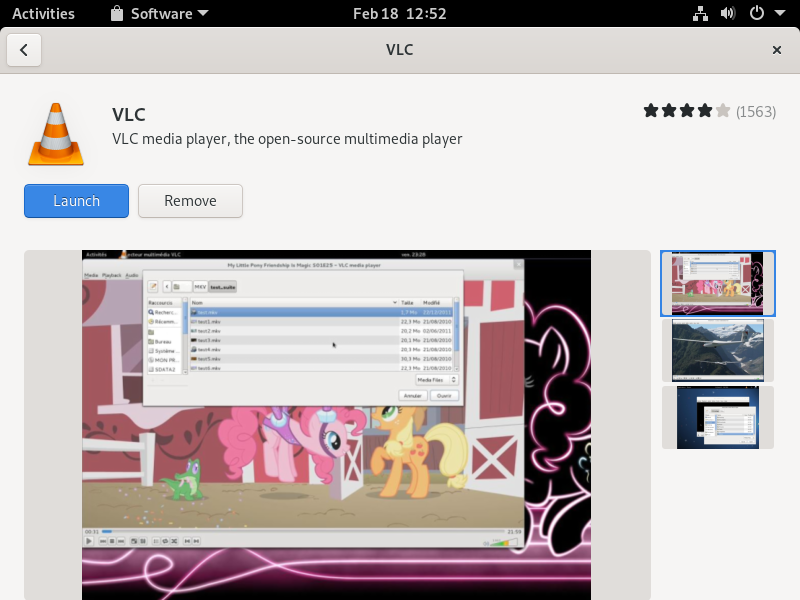

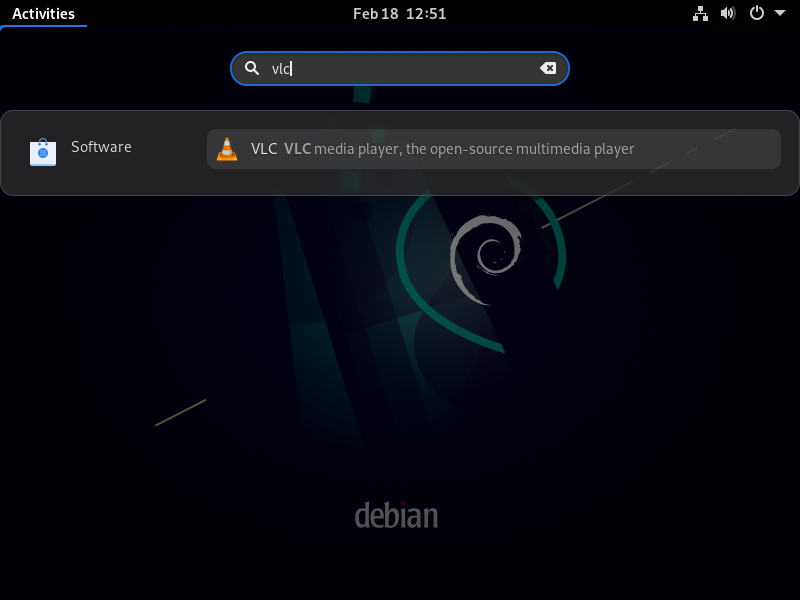

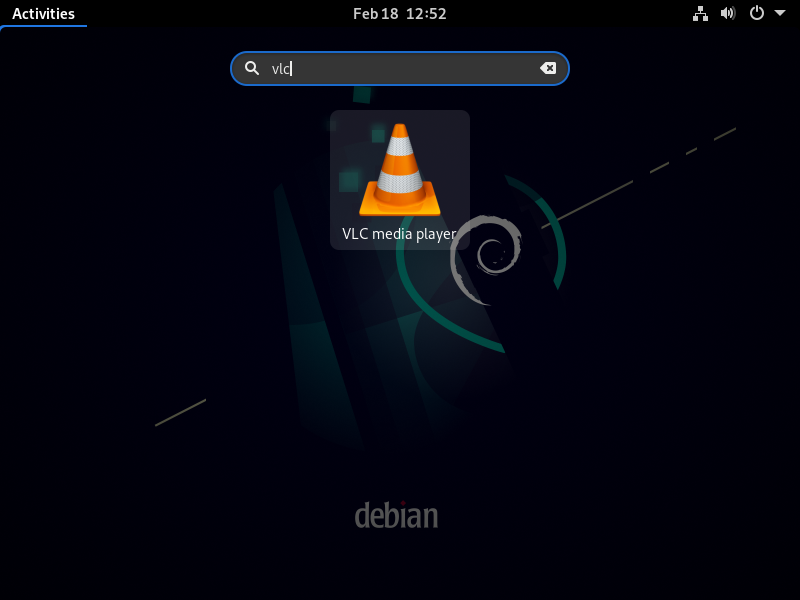

Graphical installation

Command line installation

waldek@hellodebian:~$ htop
-bash: htop: command not found
waldek@hellodebian:~$ apt install htop
E: Could not open lock file /var/lib/dpkg/lock-frontend - open (13: Permission denied)
E: Unable to acquire the dpkg frontend lock (/var/lib/dpkg/lock-frontend), are you root?
waldek@hellodebian:~$ sudo apt install htop
[sudo] password for waldek:
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
Suggested packages:
  lm-sensors strace
The following NEW packages will be installed:
  htop
0 upgraded, 1 newly installed, 0 to remove and 0 not upgraded.
Need to get 127 kB of archives.
After this operation, 328 kB of additional disk space will be used.
Get:1 http://deb.debian.org/debian bullseye/main amd64 htop amd64 3.0.5-7 [127 kB]
Fetched 127 kB in 0s (2,030 kB/s)
Selecting previously unselected package htop.
(Reading database ... 141359 files and directories currently installed.)
Preparing to unpack .../htop_3.0.5-7_amd64.deb ...
Unpacking htop (3.0.5-7) ...
Setting up htop (3.0.5-7) ...
Processing triggers for mailcap (3.69) ...
Processing triggers for desktop-file-utils (0.26-1) ...
Processing triggers for hicolor-icon-theme (0.17-2) ...
Processing triggers for gnome-menus (3.36.0-1) ...
Processing triggers for man-db (2.9.4-2) ...
waldek@hellodebian:~$

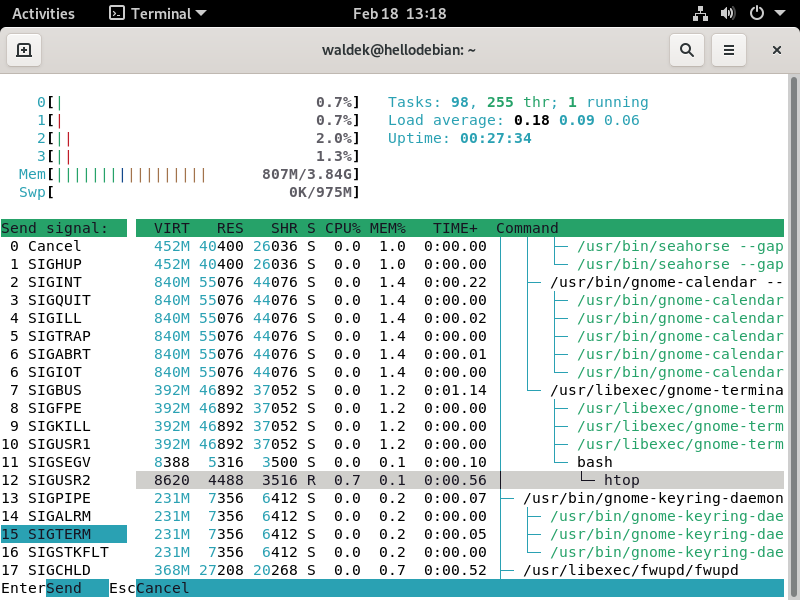

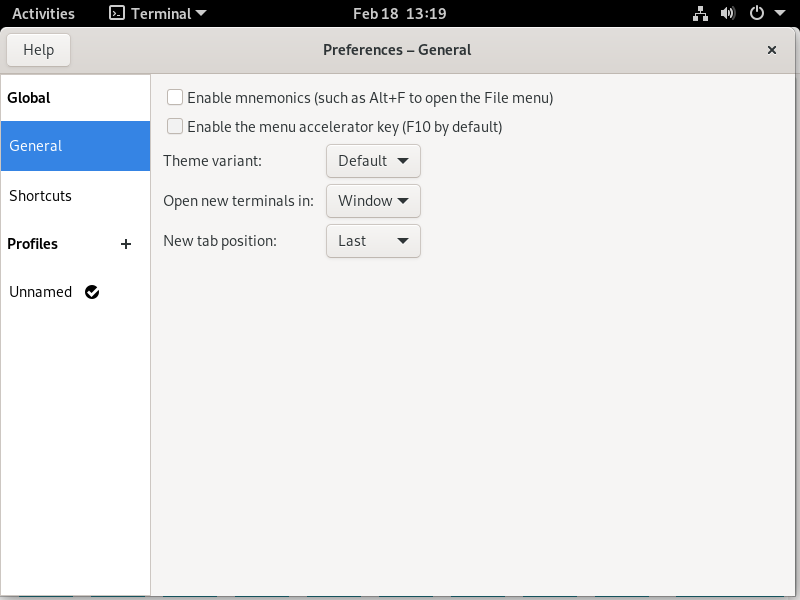

The menu bar at the bottom shows you can press F10 to quit. This does not work because of a shortcut of gnome-terminal! You can deactivate this shortcut in the preferences though. But pressing q also exits the program.

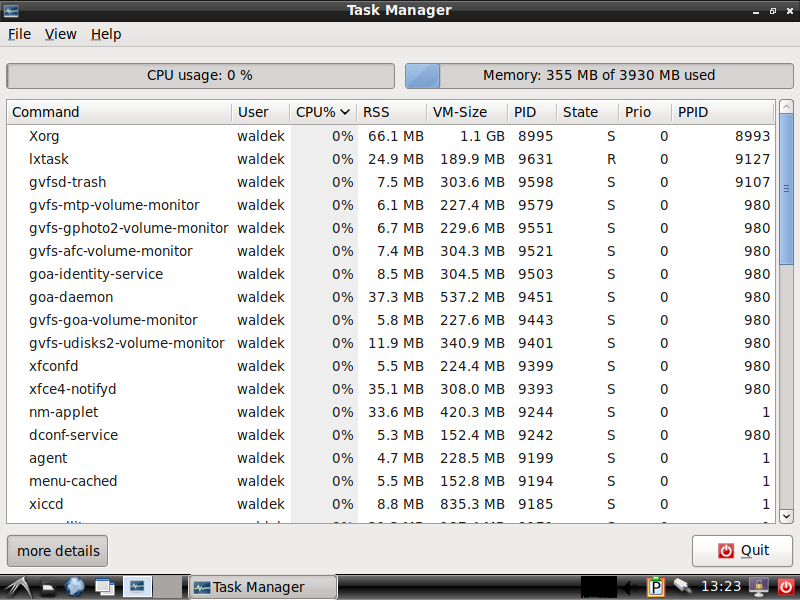

Adding a secondary desktop environment

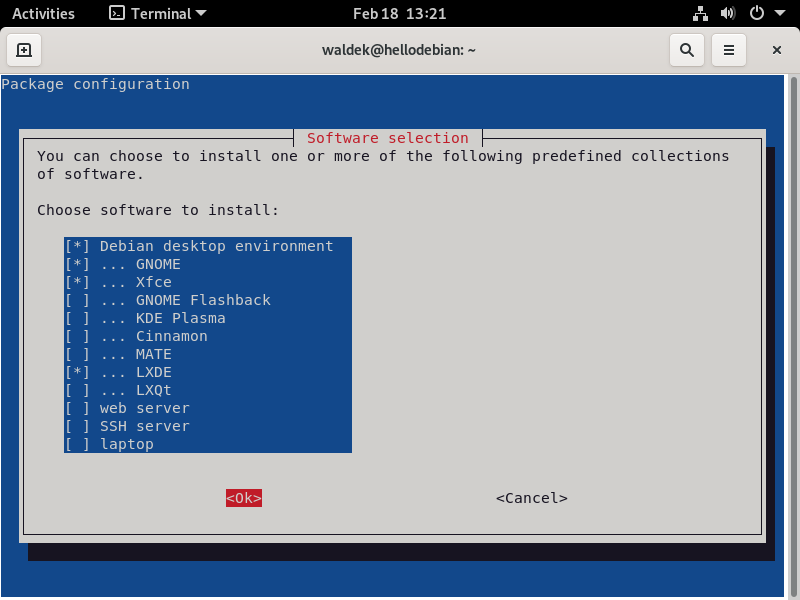

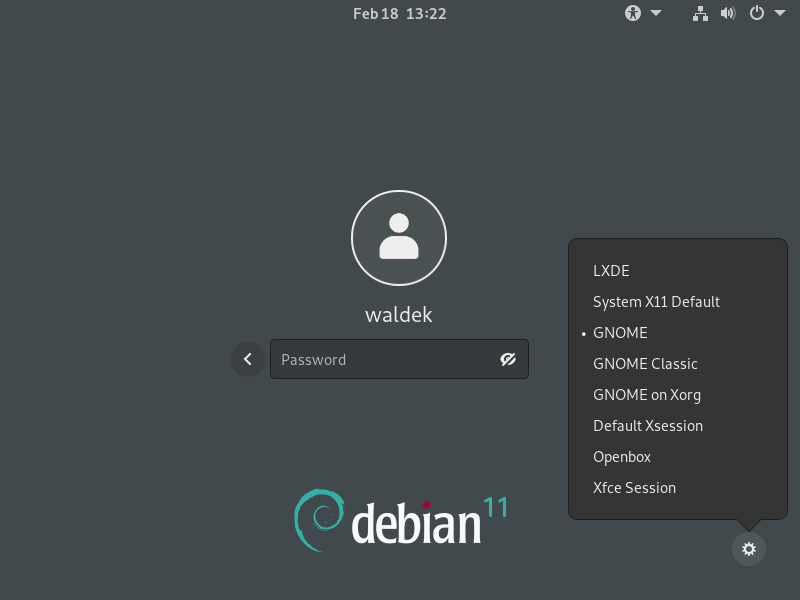

During the initial installation we where offered a choice of desktop environments to install. This menu was an actual program called tasksel we can run again to add different ones! As it's a program that can heavily modify the system, we need administrator privileges.

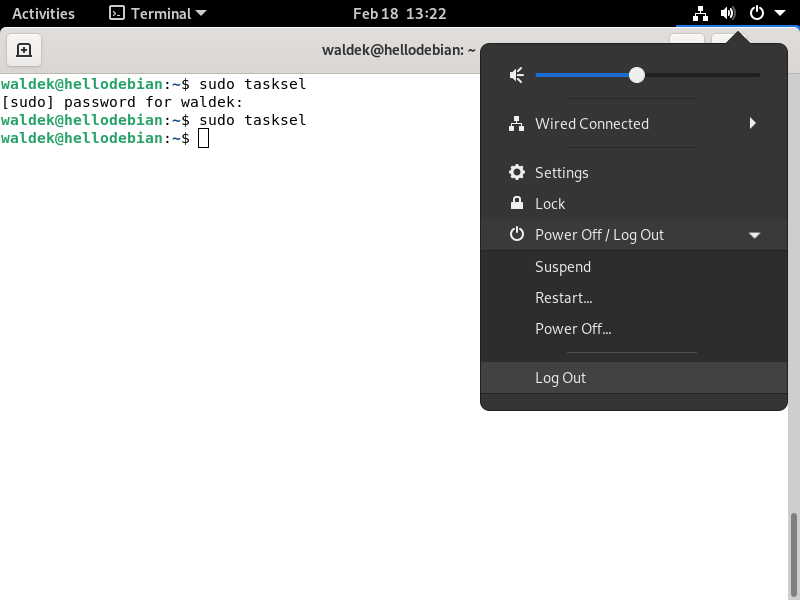

waldek@hellodebian:~$ sudo tasksel
[sudo] password for waldek:

Changing the runlevel

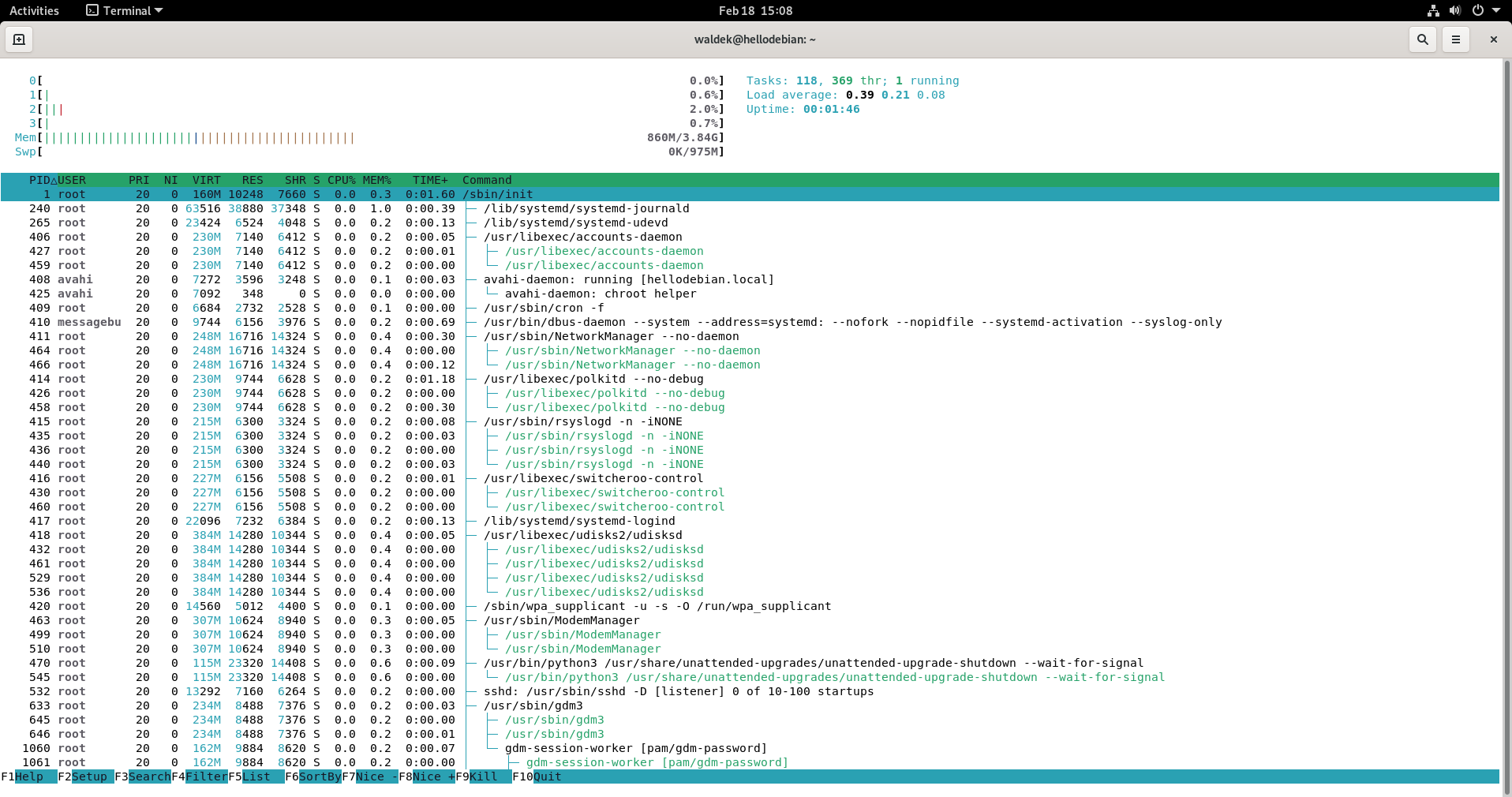

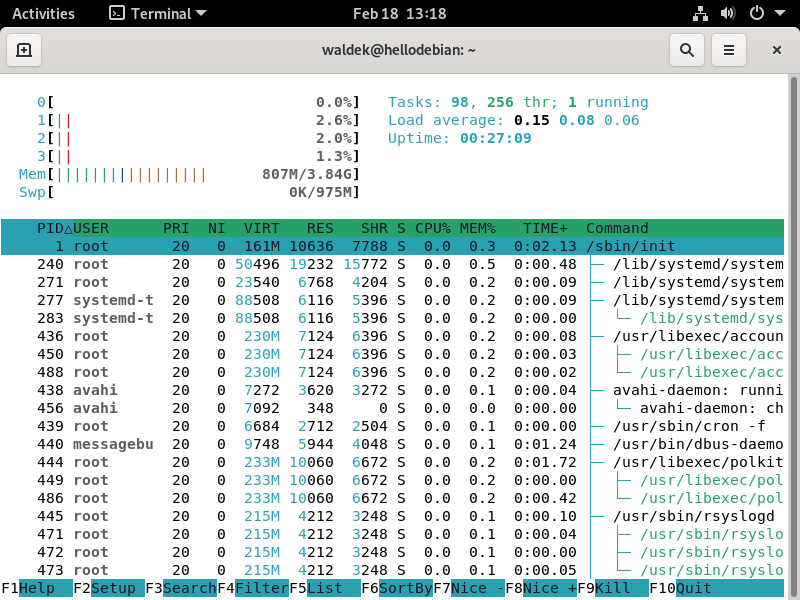

The first process started by the kernel can be discover by htop and is /usr/sbin/init. This is rather vague but we can find out a bit more about this program via ls which we'll get into more detail later. For now just have a look at the output of the following commmand.

waldek@hellodebian:~$ ls -l /usr/sbin/init
lrwxrwxrwx 1 root root 20 Jul 13  2021 /usr/sbin/init -> /lib/systemd/systemd
waldek@hellodebian:~$

Now, what is this systemd? And more importantly, how do we interact with it? For now just accept that the main program to communicate with systemd is systemctl. A quick look at the man pages gives us the following.

SYSTEMCTL(1)                                                         systemctl                                                         SYSTEMCTL(1)

NAME
       systemctl - Control the systemd system and service manager

SYNOPSIS
       systemctl [OPTIONS...] COMMAND [UNIT...]

DESCRIPTION
       systemctl may be used to introspect and control the state of the "systemd" system and service manager. Please refer to systemd(1) for an
       introduction into the basic concepts and functionality this tool manages.

waldek@hellodebian:~$ sudo systemctl set-default multi-user.target
[sudo] password for waldek:
Removed /etc/systemd/system/default.target.
Created symlink /etc/systemd/system/default.target → /lib/systemd/system/multi-user.target.
waldek@hellodebian:~$ sudo reboot now

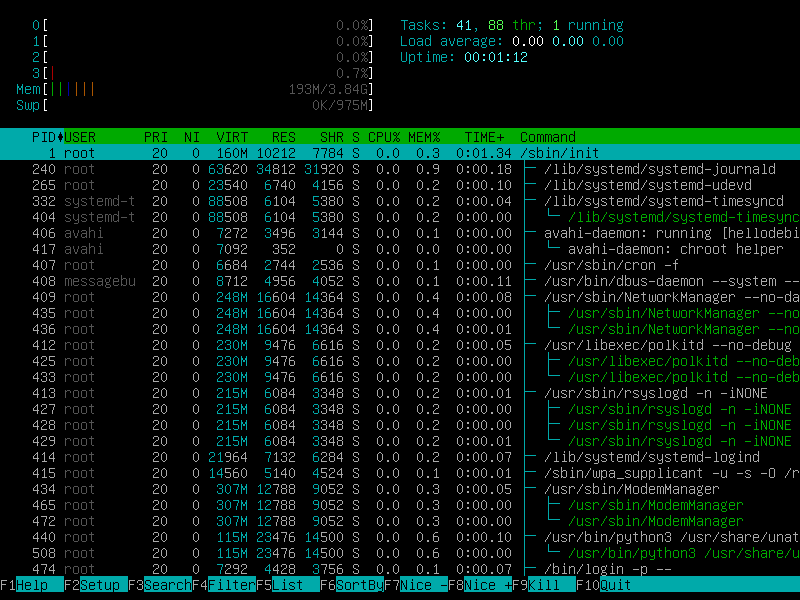

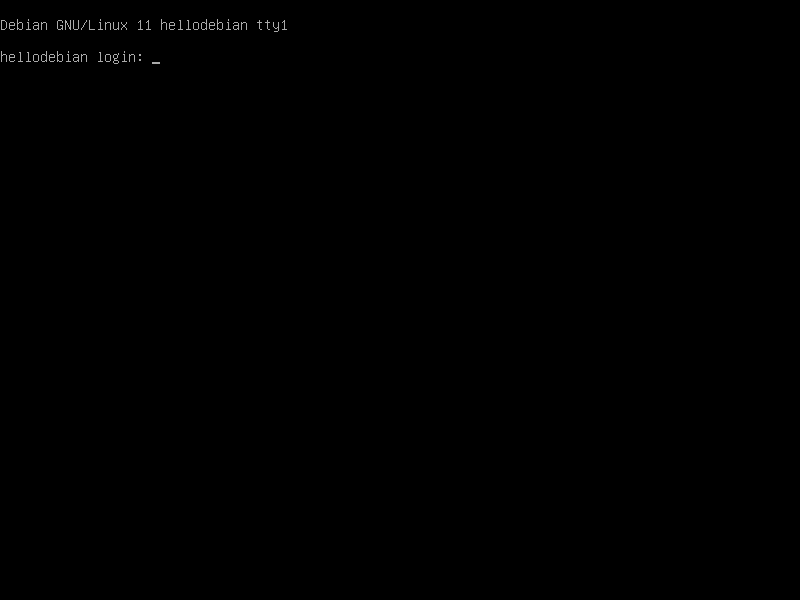

After the reboot you'll be confronted with the following screen. Don't stress, your machine is not broken! It's just running in a more minimal mode. You can log in just as with the graphical login window but you'll only have a command line to interact with the machine. A quick look at htop tells us not a lot of stuff is running, just the bare minimum.

To undo this change and regain the graphical interface again you can run the following commands.

waldek@hellodebian:~$ sudo systemctl set-default graphical.target
[sudo] password for waldek:
Removed /etc/systemd/system/default.target.
Created symlink /etc/systemd/system/default.target → /lib/systemd/system/graphical.target.
waldek@hellodebian:~$ sudo reboot now

Exercise

Please create a second virtual machine and install a minimal Debian. Minimal means no graphical environment. I advise you to not set a root password. Once this machine is up and running, install a few programs. The only one we saw up until now is htop but maybe try out bmon, elinks and/or ranger.

Guest additions

Let's make our user experience a bit nicer. Virtual machines can integrate with the host machine more fluently when you install the guest additions in the VM. It's a three step process.

1. install the required packages to build the guest additions in you VM
2. insert the guest additions CD into your VM
3. run the correct script from the CD

The dependencies can be installed as follows. First you update your package list, next you install three packages.

• build-essential
• dkms
• linux-headers-$(uname -r)

The third package name is a bit weird looking no? This is a bit of command line kung fu. The actual name of the package is as follows.

waldek@hellodebian:~$ echo linux-headers-$(uname -r)
linux-headers-5.10.0-11-amd64
waldek@hellodebian:~$

The $(uname -r) is a call to a program called uname with the option -r. We'll go more into detail on this later.

waldek@hellodebian:~$ sudo apt update
Hit:1 http://deb.debian.org/debian bullseye InRelease
Hit:2 http://deb.debian.org/debian bullseye-updates InRelease
Hit:3 http://security.debian.org/debian-security bullseye-security InRelease
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
All packages are up to date.
waldek@hellodebian:~$ sudo apt install build-essential dkms linux-headers-$(uname -r)
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
The following additional packages will be installed:
  binutils binutils-common binutils-x86-64-linux-gnu dctrl-tools dpkg-dev fakeroot g++ g++-10 gcc gcc-10 libalgorithm-diff-perl
  libalgorithm-diff-xs-perl libalgorithm-merge-perl libasan6 libatomic1 libbinutils libc-dev-bin libc-devtools libc6-dev libcc1-0 libcrypt-dev
  libctf-nobfd0 libctf0 libfakeroot libgcc-10-dev libitm1 liblsan0 libnsl-dev libstdc++-10-dev libtirpc-dev libtsan0 libubsan1
  linux-compiler-gcc-10-x86 linux-headers-5.10.0-11-common linux-headers-amd64 linux-kbuild-5.10 linux-libc-dev make manpages-dev patch
Suggested packages:
  binutils-doc debtags debian-keyring g++-multilib g++-10-multilib gcc-10-doc gcc-multilib autoconf automake libtool flex bison gdb gcc-doc
  gcc-10-multilib gcc-10-locales glibc-doc libstdc++-10-doc make-doc ed diffutils-doc
The following NEW packages will be installed:
  binutils binutils-common binutils-x86-64-linux-gnu build-essential dctrl-tools dkms dpkg-dev fakeroot g++ g++-10 gcc gcc-10 libalgorithm-diff-perl
  libalgorithm-diff-xs-perl libalgorithm-merge-perl libasan6 libatomic1 libbinutils libc-dev-bin libc-devtools libc6-dev libcc1-0 libcrypt-dev
  libctf-nobfd0 libctf0 libfakeroot libgcc-10-dev libitm1 liblsan0 libnsl-dev libstdc++-10-dev libtirpc-dev libtsan0 libubsan1
  linux-compiler-gcc-10-x86 linux-headers-5.10.0-11-amd64 linux-headers-5.10.0-11-common linux-headers-amd64 linux-kbuild-5.10 linux-libc-dev make
  manpages-dev patch
0 upgraded, 43 newly installed, 0 to remove and 0 not upgraded.
Need to get 62.0 MB of archives.
After this operation, 258 MB of additional disk space will be used.
Do you want to continue? [Y/n] y

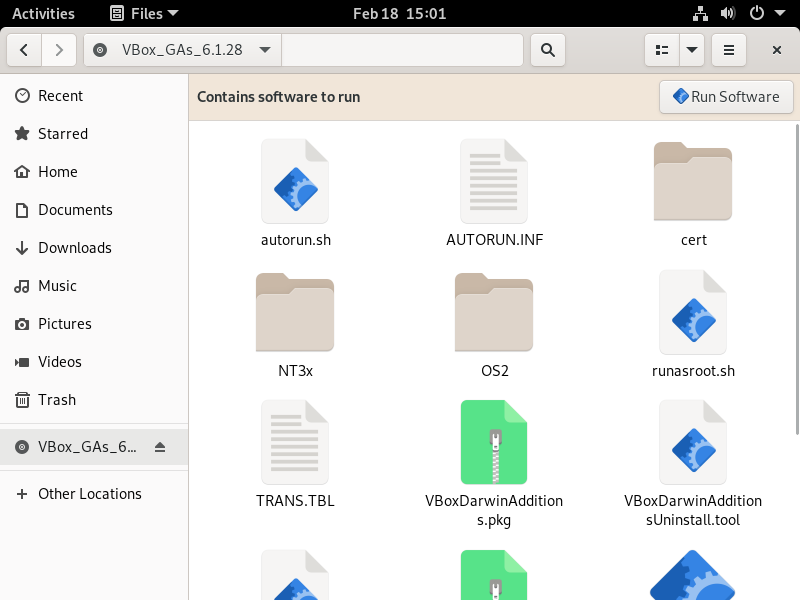

Once this is done we can insert the CD. You can verify the disk's content via the files explorer in gnome.

Now, open a terminal and run the following.

waldek@hellodebian:/media/cdrom0$ cd /media/cdrom0/
waldek@hellodebian:/media/cdrom0$ ls
AUTORUN.INF  NT3x          TRANS.TBL                          VBoxLinuxAdditions.run          VBoxWindowsAdditions.exe
autorun.sh   OS2           VBoxDarwinAdditions.pkg            VBoxSolarisAdditions.pkg        VBoxWindowsAdditions-x86.exe
cert         runasroot.sh  VBoxDarwinAdditionsUninstall.tool  VBoxWindowsAdditions-amd64.exe
waldek@hellodebian:/media/cdrom0$ sudo bash VBoxLinuxAdditions.run
Verifying archive integrity... All good.
Uncompressing VirtualBox 6.1.28 Guest Additions for Linux........
VirtualBox Guest Additions installer
Copying additional installer modules ...
Installing additional modules ...
VirtualBox Guest Additions: Starting.
VirtualBox Guest Additions: Building the VirtualBox Guest Additions kernel
modules.  This may take a while.
VirtualBox Guest Additions: To build modules for other installed kernels, run
VirtualBox Guest Additions:   /sbin/rcvboxadd quicksetup <version>
VirtualBox Guest Additions: or
VirtualBox Guest Additions:   /sbin/rcvboxadd quicksetup all
VirtualBox Guest Additions: Building the modules for kernel 5.10.0-11-amd64.
update-initramfs: Generating /boot/initrd.img-5.10.0-11-amd64
VirtualBox Guest Additions: Running kernel modules will not be replaced until
the system is restarted
waldek@hellodebian:/media/cdrom0$ sudo reboot now

Once the machine is rebooted you'll can resize the window and the screen resolution will adapt automatically! You can also enable copy/paste and drag and drop between your host and VM now.
